PB22439H
|
UPC: |
662327110031 |
|
Material: |
10417042 |
|
Brand: |
Link-Belt |
|
Model: |
PB22400 |

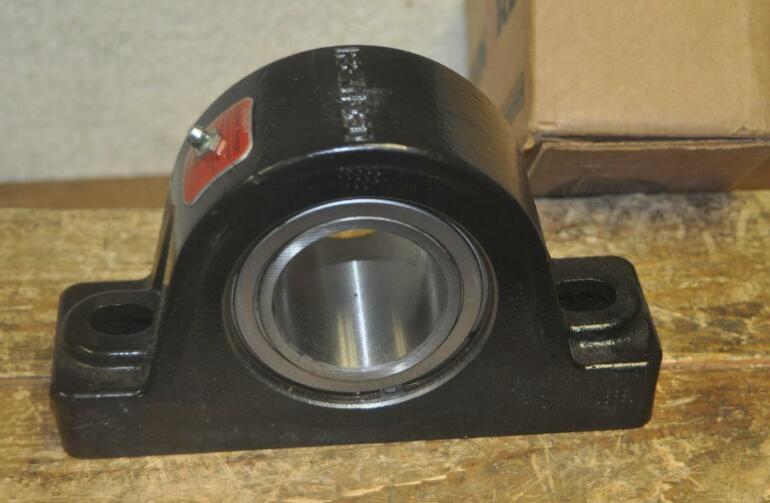

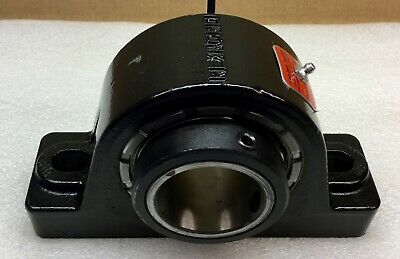

PB22439H 2 7/16 PILLOWBLK RLR BRG
2 7/16" Mounted Spherical Roller Bearing, Cast Iron 2-Bolt Pillow Block, Single Setscrew Locking Collar, Clearance Seal
|
Bore diameter: |
Base width: |
2-11/16 in | ||
|
Overall length: |
|
Expansion type: |
Non-Expansion Bearing (Fixed) | |
|
Overall height: |
|
Finish/coating: |
Powder Coated | |
|
Mounting: |
Two-Bolt Base |
|
Overall width: |
3-1/2 in |
|
Bearing type: |
Spherical Roller |
|
Seal type: |
Labyrinth |
|
Bore type: |
Round |
|
Radial dynamic load capacity: |
31400 lb |
|
Housing construction: |
Solid Pillow Block |
|
Radial static load capacity: |
53500 lb |
|
Base to bore centerline: |
2.7500 in |
|
Maximum rpm: |
2300 RPM |
|
Duty type: |
Standard Duty |
|
Lubrication type: |
Lubrication Fitting |
|
Housing material: |
Cast Iron |
|
Series: |
400 |
|
Locking device: |
Concentric Collar |
|
Standards met: |
ANSI/ABMA STD 11-1990 |
|
Bolt center-to-center length: |
7-1/8 in |
|
|
