PB22447H

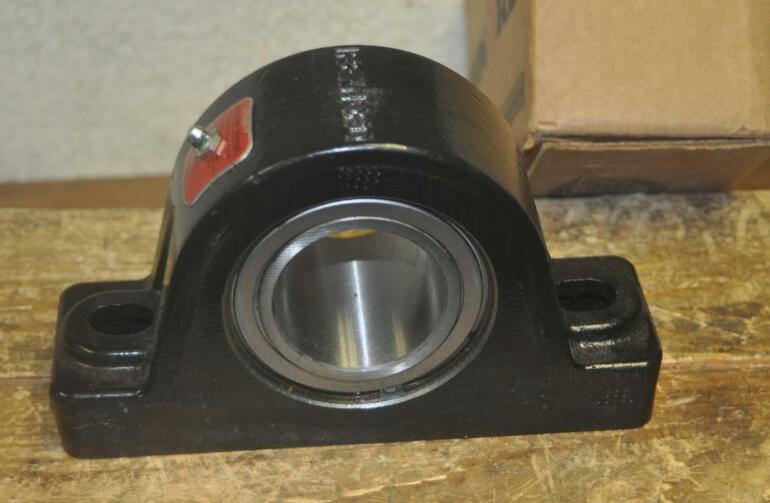

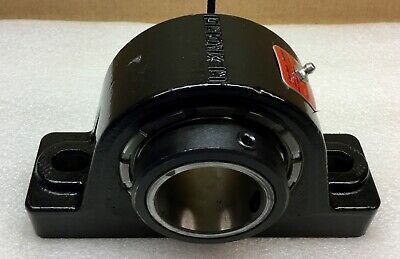

Link-Belt (Rexnord) PB22447H
Pillow Block Roller Bearing Unit - 2.9375 in Bore Dia., Two-Bolt Base, Solid Pillow Block, Cast Iron Material, Non-Expansion Bearing (Fixed)
|
Bore diameter: |
Base width: |
3-3/16 in | ||
|
Overall length: |
|
Expansion type: |
Non-Expansion Bearing (Fixed) | |
|
Overall height: |
|
Finish/coating: |
Powder Coated | |
|
Mounting: |
Two-Bolt Base |
|
Overall width: |
4 in |
|
Bearing type: |
Spherical Roller |
|
Seal type: |
Labyrinth |
|
Bore type: |
Round |
|
Radial dynamic load capacity: |
41800 lb |
|
Housing construction: |
Solid Pillow Block |
|
Radial static load capacity: |
71500 lb |
|
Base to bore centerline: |
3.2500 in |
|
Maximum rpm: |
1950 RPM |
|
Duty type: |
Standard Duty |
|
Lubrication type: |
Lubrication Fitting |
|
Housing material: |
Cast Iron |
|
Series: |
400 |
|
Locking device: |
Concentric Collar |
|
Standards met: |
ANSI/ABMA STD 11-1990 |
|
Bolt center-to-center length: |
8-1/8 in |
|
|
· Series B22400 collar mounted spherical roller bearing units provide economic and versatile arrangements for supporting shafts that carry substantial radial or combination radial and thrust loads
· Easy to mount
· Sealed and prelubricated
· Do not require adjustment during mounting
· Cast iron housing
· Corrosion-resistant powder coating
· Factory set clearance and lubrication
· Field interchangeable seals
· Fixed or Expansion: Total of 3/8" expansion
· Hardened spring locking collar
· Misalignment capabilities: Total of 4°
· Self-aligning type E interchange
